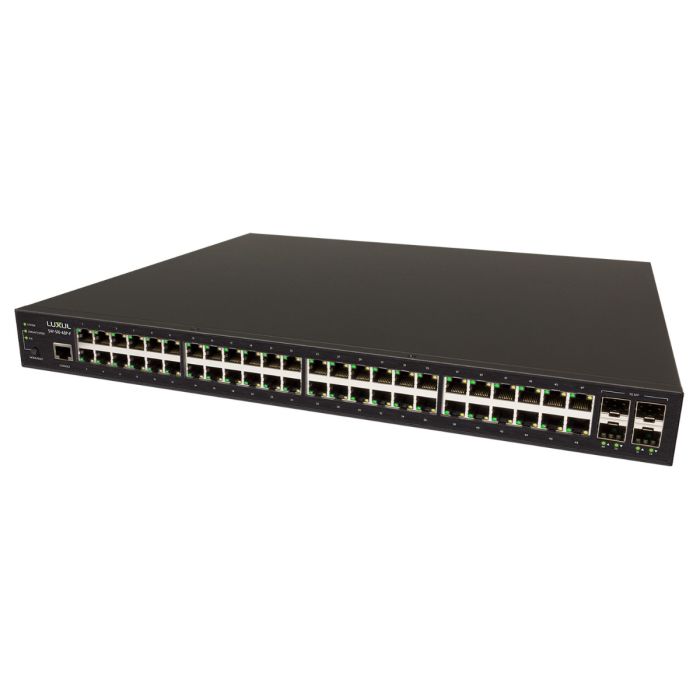

Luxul SW-510-48P-F 48-Port Gb PoE+ L2 L3 Managed Switch with 4 SFP

The SW-510-48P-F is a 48 port PoE+ front facing single space rackmount Gigabit switch with 4 SFP 1Gb ports and a total PoE power budget is 740W. This L2/L3 switch with 104Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management.

Included in the box:
SW-510-48P-F switch, power and console cables, rack ears and set of four (4) adhesive feet, quick install guide & regulatory documentation

  • PoE Self-Healing with auto-recovery and power scheduling
  • 48 PoE+ Gigabit Ports
  • 740 Watt total PoE budget
  • Front-facing ports
  • 4 SFP 1Gb Ports
  • Rack Mountable
  • Group Manager -Single pane user interface for easy administration of multiple 510 and 610 series switches
Max. Power Consumption 899W @ 100VAC
PoE Power Budget 740W
Switching Capacity 104 Gbps
Connection Type Wired
Layer Support L2
Number of Ports 48
PoE Self Healing Per Port Basis
Port Location Front
Power Cord US Cord
Power Type AC
ProWatch Type ProWatch Integrated
SPF Port Type 4 x 1 Gigabit
Switch Type Managed
VLAN Compliance 802.1Q
Operating Temperature +32°F to +122°F (0°C to +50°C)
Dimensions (H x L x W) 1.75 in (44mm) x 17.4 in (442mm) x 14.75 in (375mm)
Weight 12.4lbs (5.62g)
Warranty Three Year Limited Warranty (Parts & Labor)
