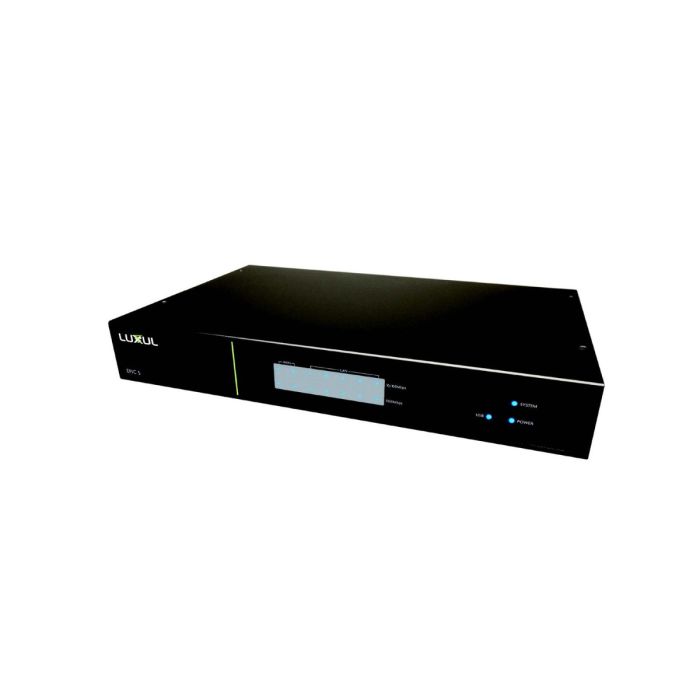

Luxul ABR-5000 Dual-WAN Gigabit Router

The Epic 5 offers everything you’d expect in a full-featured high-performance router including gigabit networking and secure remote access, but it’s also much more. Powerful web content filtering and dual-WAN capabilities make the network smarter and more reliable, for a truly exceptional internet experience.

Included in the box:
Epic 5 ABR-5000 gigabit router, rack mount kit, rubber feet, power cord, quick install guide

Gigabit WAN to LAN Performance:
High-speed networking for ultra-fast streaming and bandwidth-intensive applications.

Clean & Modern Look:
Green/blue front-facing LEDs and rear-facing ports for polished AV rack solutions.

Secure Remote Access:
Enable convenient and secure remote access to the network via VPN.

Dual-WAN Capability:
Connect the LAN to two internet connections with load-balancing and failover control.

Custom Content Filtering:
Customizable web content filtering and scheduling to control when and how the network is used.*

Powerful Configuration:
Easily enable essential features like security, remote access and media sharing.

Additional features:

  • AV Series – Ports on the Back
  • User Selectable Green/Blue Front-Facing LEDs
  • 2 Dedicated WAN, 5 Dedicated LAN Ports
  • Dual-WAN Failover and Load Balancing
  • Virtual Private Network (VPN): PPTP, L2TP, IPsec
  • Quality of Service (QoS)
  • Virtual Local Area Network (VLAN)
  • Network Security and Firewall
  • Simple Setup and Management
  • 1 USB 3.0 Port
  • Fanless for Silent Operation
  • Durable 1U Metal Enclosure for Rack Mount or Desktop Use
Connection Type Wired
Power Cord US Cord
Power Type AC
ProWatch Type ProWatch Plus
SSID Capability 8
VLAN Compliance 802.1Q
Wired Data Rate LAN-LAN 1Gbps
WLAN-LAN 1Gbps
Operating Temperature +32°F to +122°F (0°C to +50°C)
Dimensions (H x L x W) 1.75 in (44mm) x 12 in (305mm) x 7.34 in (186mm)
Weight 3.8lbs (1.72g)
Warranty Three Year Limited Warranty (Parts & Labor)
