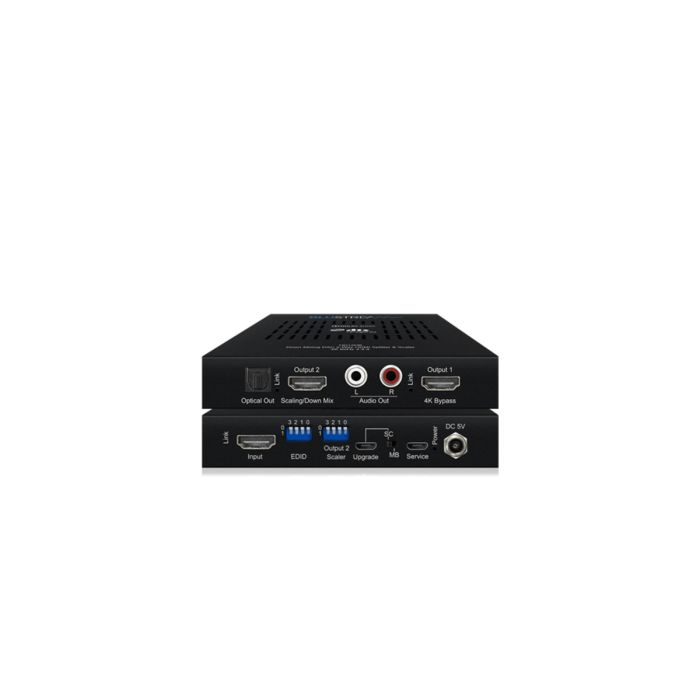

HD12DB - 2-Way HDMI® Splitter with Dolby Down Mixing DAC

The Blustream HD12DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within a HDMI® signal into a stereo 2ch signal available on HDMI, optical and analog audio outputs.

The HD12DB features a HDMI loop out to pass the original video and multi-channel embedded audio signal to compatible equipment, with a second HDMI output featuring video scaling of resolutions up to 4K @ 60Hz 4:4:4 video to various lower video formats.

This provides the perfect cost-effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a multi-room system where there are a mixture of 2ch and 5.1ch zones with multiple output resolution requirements.

Box Contents

1 x HD12DB
1 x 5V/3A DC Power Supply
1 x Mounting Kit
4 x Rubber Feet
1 x Quick Reference Guide

  • Features an in-built DAC (Digital to Analog audio Converter) that converts 5.1ch Dolby Audio or DTS Audio to a stereo 2ch signal available on HDMI, optical and analog audio outputs concurrently

  • Supports the following audio input formats: Dolby 5.1, DTS-ES 6.1, DD+5.1, DD+2.0, PCM 5.1, PCM 2.0*

  • Features 1 x HDMI input supporting 4K UHD video (4K @ 60Hz 4:4:4) that is replicated to 2 x HDMI outputs

  • HDMI loop out will replicate the HDMI input signal up to 4K @ 60Hz 4:4:4 and 5.1ch Dolby Audio & DTS Audio

  • HDMI output 2 features a video scaler allowing the output resolution to be set to the following formats:

    - 3840x2160 @ 60Hz

    - 3840x2160 @50Hz

    - 3840x2160 @ 30Hz

    - 3840x2160 @25Hz

    - 4K DCI @ 25Hz 4:4:4

    - 4K DCI @ 30Hz 4:4:4

    - 4K DCI @ 50Hz 4:4:4

    - 4K DCI @ 60Hz 4:4:4

    - 1920x1080 @ 60Hz

    - 1920x1080 @50Hz

    - 1280x720 @ 60Hz

    - 1280x720@50Hz

    - 1920x1200@ 60Hz

    - 1680x1050@ 60Hz

    - 1024x768@ 60Hz

  • HDMI audio breakout to down-mixed analog L/R audio and down-mixed optical digital outputs concurrently

  • HDCP 2.2 compliant with advanced EDID management

    *Please Note: This product does not support decoding of DTS CD bitstreams. Playback of this format may produce undesirable noise.

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female

  • Audio Output Connectors: 1 x Optical (TOSLINK), 2 x RCA analog Left / Right

  • EDID: 4-pin DIP switch

  • Resolution: 4-pin DIP switch

  • Product Upgrade: 2 x Micro USB female

  • Dimensions (W x H x D): 127mm x 23mm x 104mm, without feet

  • Shipping Weight: 1.0kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/3A DC
