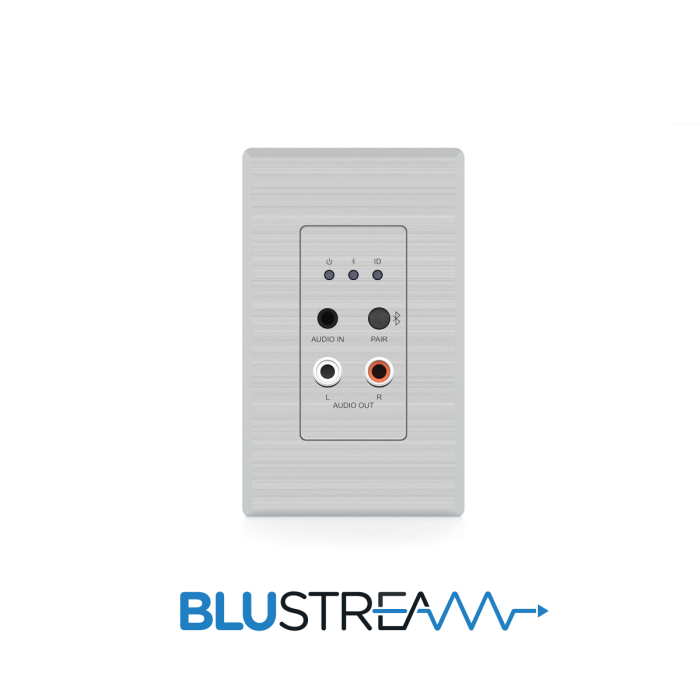

main product photo

DA11ABL-WP-US - Bluetooth & Analog Audio Dante® Wall Plate

Find a Dealer

The DA11ABL-WP-US is a multi-input / output wall plate to convert Bluetooth and analog audio within a digital Dante® networked audio system. The DA11ABL-WP converts 2 x input channels of Bluetooth, or unbalanced audio to Dante® digital audio, and 2 x channels of Dante® audio to 2 x output channels of unbalanced audio. Software configuration for the DA11ABL-WP allows for the Bluetooth name to be amended as required where being deployed in multi-user spaces.

The DA11ABL-WP is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport, and magnetic faceplate design allows for both UK & EU backbox compatibility. The DA11ABL-WP is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante® audio system.

Box Contents

1 x DA11ABL-WP
1 x Magnetic Faceplate
1 x Quick Reference Guide

  • Dante® network wall plate interface for Bluetooth and analog L/R audio inputs, and L/R audio outputs

  • Converts 2ch Bluetooth, or un-balanced audio sources to Dante® audio

  • Converts 2x Dante® audio channels to un-balanced audio outputs

  • Configurable Bluetooth naming allows for simple discovery of the unit

  • Adjustable input sensitivity from +24dBu to -28dBV via control software

  • Adjustable output gain from +20dBu to -28 dBV via control software

  • Supports: 44.1, 48 & 96kHz sample rates @ 16, 24 or 32 Bit

  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

  • Supports AES67 RTP audio transport

  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch

  • Supports power via 12V DC adapter (not included) for when network switch does not support PoE

  • Magnetic faceplate surround and US Decora style backbox compatibility



    *Dante® is a registered trademark of Audinate Pty Ltd

Key Features

  • Dante® network wall plate interface for Bluetooth and analog L/R audio inputs, and L/R audio outputs

  • Converts 2ch Bluetooth, or un-balanced audio sources to Dante® audio

  • Converts 2x Dante® audio channels to un-balanced audio outputs

  • Configurable Bluetooth naming allows for simple discovery of the unit

  • Adjustable input sensitivity from +24dBu to -28dBV via control software

  • Adjustable output gain from +20dBu to -28 dBV via control software

  • Supports: 44.1, 48 & 96kHz sample rates @ 16, 24 or 32 Bit

  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

  • Supports AES67 RTP audio transport

  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch

  • Supports power via 12V DC adapter (not included) for when network switch does not support PoE

  • Magnetic faceplate surround and US Decora style backbox compatibility



    *Dante® is a registered trademark of Audinate Pty Ltd

  • Audio Input Connections: 1 x Analog Left / Right audio (3.5mm stereo jack)

  • Audio Output Connections: 2x Analog RCA (Left / Right)

  • Network Connection: 1 x PoE Dante® Ethernet Connection (RJ45)

  • Bluetooth Connection: Bluetooth V5.0 - SBC / MP3 / AAC / APT-X / APTX-LL / APTX-HD, 44.1K-48KHz 16 / 24Bit

  • Module Dimensions (W x H x D): 50mm x 104mm x 48mm (without faceplate)

  • Faceplate Dimensions (W x H x D): 70mm x 155mm x 5mm

  • Cut Out Dimensions (W x H x D): 46mm x 56mm x 39mm

  • Mounting Hole Spacing: US 83mm CTC

  • Backbox Requirements: US single gang junction box

  • Shipping Weight: 0.5 Kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)

  • Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector
