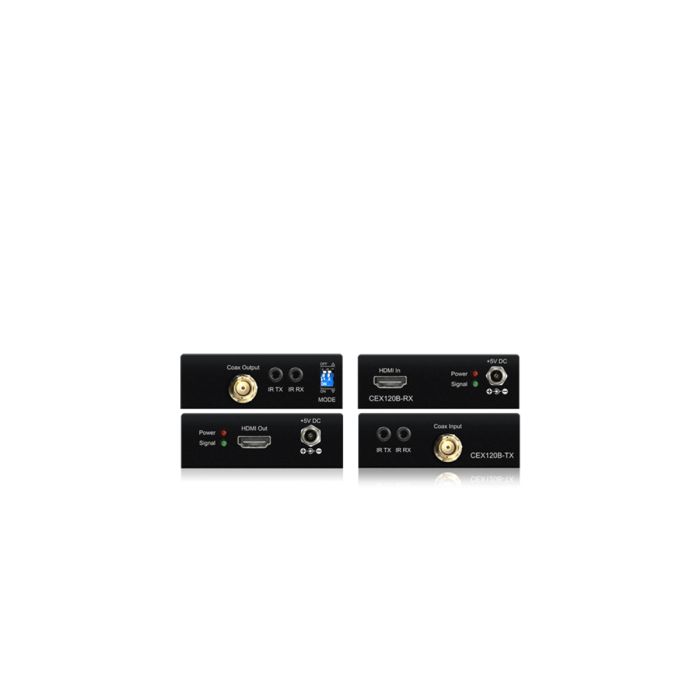

CEX120B-KIT - HDMI® Over Coax Extender Set - 120m

Find a Dealer

Our CEX120B-KIT HDMI® extender set offers HDMI distribution over a single Coaxial cable. The product delivers HDMI & Bi-directional IR up to lengths of 120m @ 1080p.

Box Contents

1 x CEX120B-TX
1 x CEX120B-RX
2 x 5V/1.2A DC Power Supply
1 x IR1 Emitter
1 x IRR Receiver
2 x Mounting Brackets
2 x F-type to BNC Adaptor
1 x User Manual

  • Extends HDMI 1080p up to a distance of 120m over a single coaxial cable

  • Supports the following video resolutions - 480i, 576i, 720p, 1080i and 1080p

  • Supports bi-directional IR from input and output locations

  • Supports audio formats up to 7.1ch

  • Supplied with Blustream IR receiver and emitter

  • Requires local power at both transmitter and receiver

  • Smart EDID management

  • HDCP 1.4 compliant

Key Features

CEX120B-TX:

  • Video Input Connectors: 1 x HDMI Type A

  • Video Output Connectors: 1 x BNC connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • Casing Dimensions (W x D x H): 79mm x 84mm x 28mm



CEX120B-RX:

  • Video Input Connectors: 1 x BNC connector

  • Video Output Connectors: 1 x HDMI Type A

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • Casing Dimensions (W x D x H): 79mm x 84mm x 28mm



  • Supported Video Resolutions: 480i 30Hz, 576i 25Hz, 720p 50Hz, 720p 60Hz, 1080i 25Hz, 1080i 30Hz, 1080p 24HZ, 1080p 30Hz, 1080p @ 60Hz

  • Please Note: 4K, 3D and 480i/p Video is not supported

  • Supported Audio Resolutions: Dolby Digital (up to 7.1CH), DTS ES (up to 7.1CH), 2CH PCM

  • Unit Weight: 2 x 0.25Kg

  • Shipping Weight: 1.1Kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
