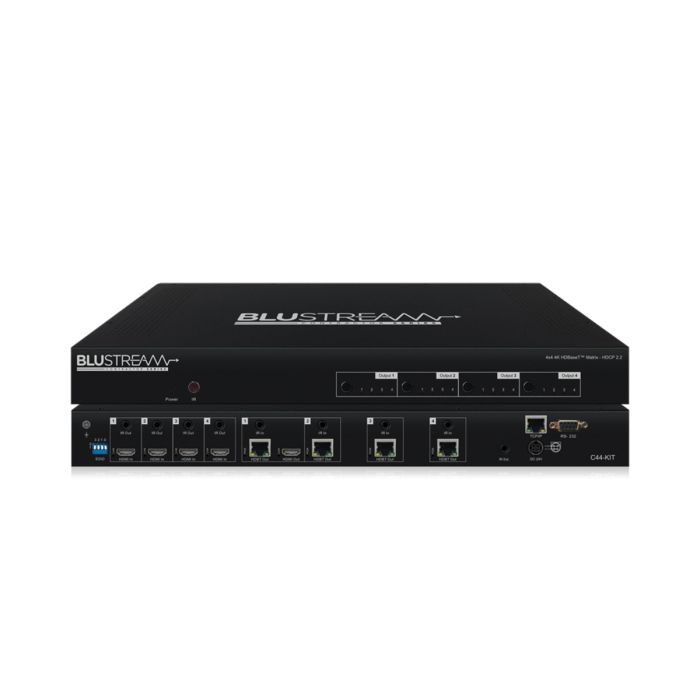

main product photo

C44-KIT - Contractor 4x4 HDBaseT™ Matrix Kit - 70m

Find a Dealer

Our Contractor 4x4 HDBaseT Matrix offers unprecedented performance and value for the custom installation market.

The C44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT / HDMI on output 1 and a web browser interface module for control and configuration of the matrix.

The C44-KIT is supplied with 4 x HEX70B receivers.

Box Contents

1 x C44
4 x HEX70B-RX
1 x Rack Mounting Kit
4 x Mounting kit for HEX70B-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Quick Reference Guide

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency

  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT outputs

  • Output 1 features simultaneous HDMI and HDBaseT output

  • Extends HDMI up to a distance of 70m over single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Web interface module for control and configuration of matrix

  • Supports bi-directional IR on all HDBaseT outputs

  • Supplied with Blustream IR receivers and emitters

  • Control via front panel, IR, RS-232 and TCP/IP

  • Supports PoC (Power over Cable) to supplied HDBaseT receivers

  • 3rd Party drivers available for major control brands

  • 1U Design for 19" rack mount integration - mounting kit included

  • Advanced EDID management

  • HDCP 2.2 compliant

  • Supplied with 4 x HEX70B-RX receivers

Key Features

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT RJ45 connector

  • RS-232 Serial Port: 1 x DB-9, female

  • TCP/IP Control: 1 x RJ45, female

  • IR Input Ports: 5 x 3.5mm stereo jack

  • IR Output Ports: 4 x 3.5mm mono jack

  • Rack Mountable: 1U rack height, rack ears included

  • Case Dimensions (without feet) (W x D x H): 440mm x 202mm x 44mm

  • Dimensions (W x D x H): 440mm x 212mm x 52mm

  • Shipping Weight: 2.7kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 1 x 24V/3.5A DC
