KA11 11 Inch In-Wall/Tabletop Touchpanel

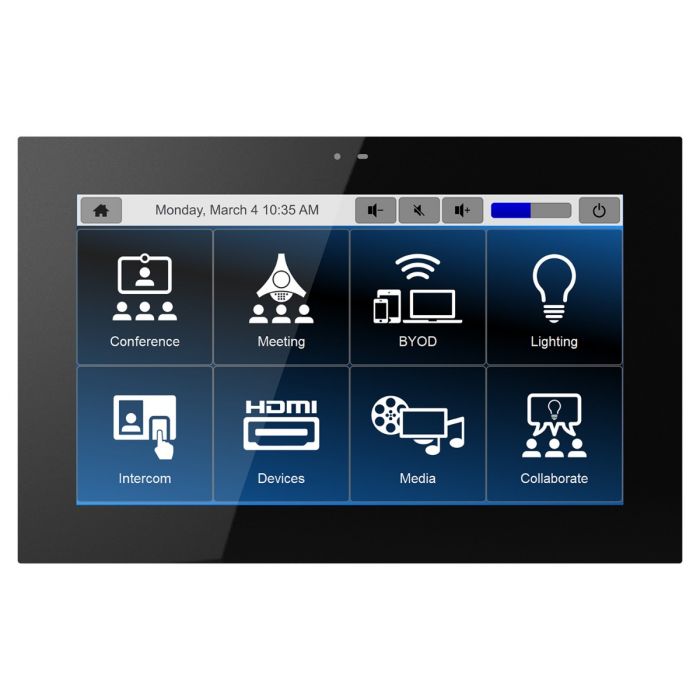

The KA11 touchpanel provides exceptional control of the entertainment, environment and security systems in residential or commercial settings. Simple and intuitive, the sleek touchpanel features a fully customizable 11.6” widescreen LCD display with an integrated capacitive touchscreen for swiping through pages and menus. The innovative KA11 is programmable in landscape or portrait mode and comes equipped with sensors to automatically wake the unit and adjust the screen brightness as a user approaches.

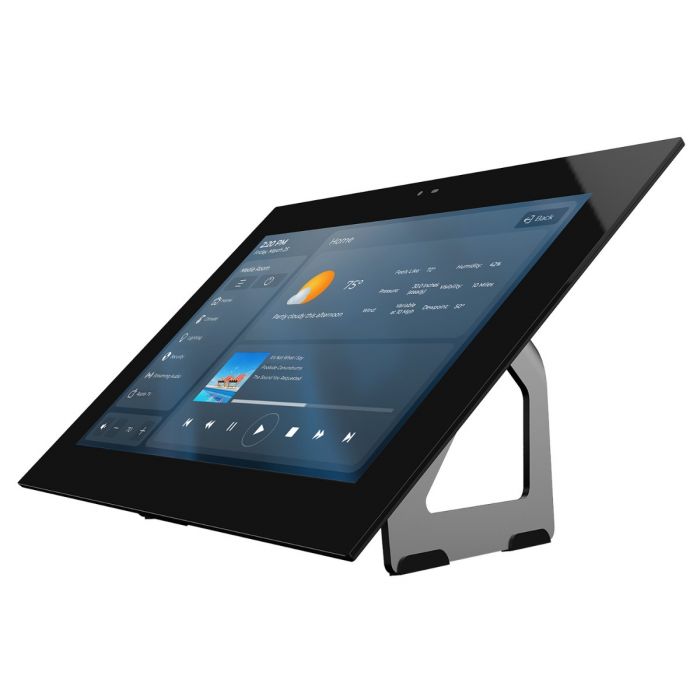

Installation is easy using the included wall bracket or an accessory stand is available for table top installations. In addition, only one Ethernet connected Cat-5/6 cable is required to power the unit and enable control via the RTI ecosystem.
Included in the box:
KA11, mounting bracket (1), mounting screws (4), 2-gang low voltage bracket (1)
The Tabletop Stand is sold separately
Tabletop / On-Wall

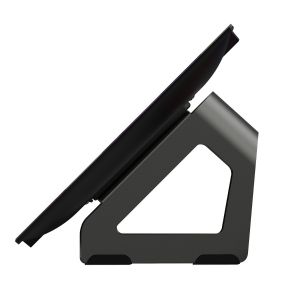

Unique hybrid touchpanel for wall-mount or tabletop use. Whether you have it on the wall or on a table or countertop, the KA11 touchpanel with its sleek design is a true eyecatcher.
2-Way
Get status feedback from controlled devices on your touchpanel such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.
Ethernet
Check the weather forecast, view video from network security cameras or perform remote programming updates through a standard 10/100 BaseT network connection.
Camera / Microphone / Speakers
Answer the door via the built-in video intercom (KA11 to 2N door stations is supported).
PoE
Power your touchpanel through a PoE network switch or PoE injector. No extra power supply required.
Proximity Sensor
Wake the touchpanel by just approaching it. This is very convenient when you enter a dark room or your home at night.
Ambient Light Sensor
Enjoy the perfect display brightness that’s automatically set depending on the ambient light.
- 11.6” widescreen LCD with 1920x1080 Full HD resolution and integrated capacitive touchscreen, supporting multi-touch and gesture.
- Fully customizable interface can be programmed in portrait or landscape mode.
- Innovative design allows wall mount in dual gang electrical box or table top installation using stand accessory (sold separately).
- Ambient light and proximity sensor adjusts the screen brightness and LED backlights automatically according to the environmental light level.

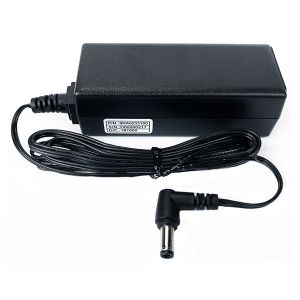

- Powered by a separate power supply or PoE+.
- Gigabit Ethernet with PoE enables video from IP security cameras, enhanced two-way feedback and remote programming updates.
- Video intercom capability to 2N door stations with built in camera, microphone and speakers.
| Power (Power Supply not included) | +24VDC, 1A or PoE (802.3af) |
| Power Management | Adjustable backlight/ proximity sensor |
| Touchscreen Display | High-brightness color IPS LCD Full HD (1920x1080 pixels) with 16.7M colors Integrated high-resolution projected capacitive touchscreen |
| Display Size | 11in (294mm) diagonal |
| Display Backlight | LED Backlit, 350nit |
| Ethernet Port | RJ-45, 10/100/1000 Base-T with Power-over-Ethernet Plus |
| Camera | Color CMOS, 8MP, 30FPS |
| Microphone | Built-in Microphone |
| Speakers | Two (2), Stereo 2 Watt |
| Communications | Ethernet / Network IP |
| Total System Memory | 2GB DDR3, 8GB eMMC Flash |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Total number of macros is limited only by memory |
| Operating Temperature | 0 to +50°C / +32 to +122°F |
| Operating Humidity | 5% to 95% Non-condensing |
| Mounting | Tabletop with Aluminum Stand or Wall-Mount |
| Installation | US standard 2 gang low voltage bracket (included) |
| Outer Bezel Dimension (WxH) | 12.4in (313mm) x 7.9in (201mm) |
| Depth in Wall | 0.83in (21mm) |
| Weight | 1.78lb (807g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Declaration | This product does not contain chemicals which are listed on California’s Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of California’s risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All features and specifications subject to change without notice.
